Features

Photoelectric, integrated low-flow technology

Air velocity rating from 100 ft/min to 4,000 ft/min (0.5 m/s to 20.32 m/sec)

Versatile mounting options: square or rectangular configuration

Plug-in sensor offers superb false alarm immunity and the latest sensor technology

Broad ranges for operating temperature (–4°F to 158°F) and • humidity (0% to 95% non-condensing)

Patented sampling tube installs from front or back of the detector with no tools required

Increased wiring space with a newly added ¾-inch conduit knockout

One easy-access Test/Reset button and improved LED status

Patented interconnect feature for multi-fan shutdown

New high contrast terminal designations

Built-in short circuit protection from operator wiring errors

Field selectable settings for configuring the detector

Two DPDT Form-C relay contacts

24 VAC/DC or 120VAC

Backward compatibility with existing Innovair products, including remote accessories

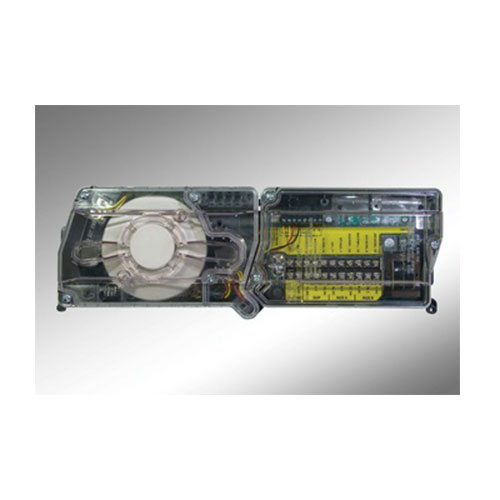

The InnovairFlex D4120 4-wire photoelectric duct smoke detector features a pivoting housing that fits both square and rectangular footprints and mounts to round or rectangular ductwork. This unit senses smoke in the most challenging conditions, operating in airflow speeds of 100 to 4,000 feet per minute, temperatures of –4°F to 158°F, and a humidity range of 0 to 95 percent (non-condensing). A plug-in sensor head offers improved false alarm immunity and simple installation, testing, and maintenance. An improved cover design isolates the sensor head from the low-flow feature for simple maintenance.

The InnovairFlex housing provides ample wiring space, a ¾-inch conduit knockout, and built-in short circuit protection to prevent damage to sensitive components during installation. High contrast terminal designations make wiring easy. With its 2:1 sensor-to-power capability, the power board of the D4120 may be used to monitor a second sensor ,D4S, simultaneously (i.e., supply and return side). As many as 50 InnovairFlex detectors can be interconnected. When one unit senses smoke, all interconnected detectors will switch their relays; only the detector sensing smoke will go into alarm, thus pinpointing the fire source.

An easy-access Test/Reset button makes it possible to test the unit with the cover on. Three DIP switches can be used to configure field selectable settings: cover tamper delay, number of sensors to be controlled, and shut down on trouble option. Each power board has two LEDs that can be used to indicate the status of connected sensors, and a quick reference imprinted on the cover explains the LED status indications (Standby, Maintenance, Trouble, and Alarm). The InnovairFlex duct smoke detector can be customized to meet local codes and specifications without additional wiring. The new InnovairFlex product line is compatible with all previous Innovair models, including remote test accessories.
