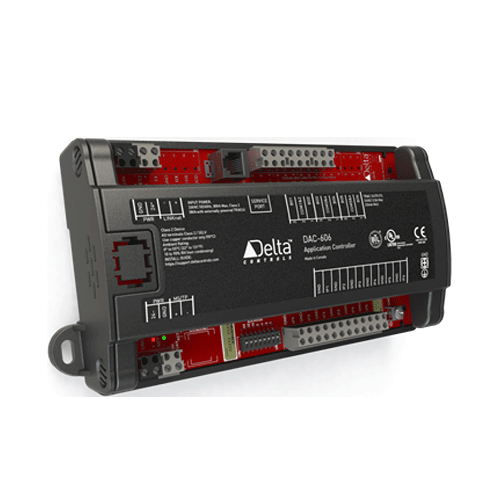

BACnet Device Profile BACnet Advanced Application Controller (B-AAC) Inputs 6 Universal Inputs (10-bit) supporting: 0-5 VDC 0-10 VDC 10 kΩ Thermistor Dry Contact (using 10 kΩ Thermistor jumper setting) 4-20 mA Outputs 6 Binary TRIAC Outputs (jumper configured for internal or external power) Device Addressing Set via DIP switches and jumpers, or software setup Connectors Removable screw-type terminal connectors Wiring Class Class 2 / SELV Power 24 VAC 50/60 Hz @ 8 VA, 80 VA with fully-loaded TRIAC Outputs Technology DAC-606: 16-bit processor 1 MB flash memory 127 KB SRAM memory for database DAC-606E: 16-bit processor 2 MB flash memory 319 KB SRAM memory for database Real-time clock Super Capacitor for 72-hour backup of realtime clock and SRAM Communications Ports Twisted-Pair Ethernet (10-BaseT) @ 10 MB, BACnet IP, BACnet over Ethernet Main LAN (NET1) BACnet MS/TP @ 9600, 19200, 38400 or 76800 bps (default), max of 99 devices per BACnet MS/TP network SubLAN (NET2) Delta LINKnet @ 76800 bps, max 6 devices on LINKnet, with no more than 2 DFM devices Ambient 0° to 55°C (32° to 131°F) 10 to 90% RH (non-condensing) Dimensions 21.8 x 10.7 x 4.9 cm (8½ x 4⅟4 x 115/16 in.) with housing Weight 360 g (0.80 lb.) with housing Compliance CE FCC EAC Listings C-UL Listed UL 916 Listed BTL Listed
