enteliBUS I/O Module eBM-D400R4

Lượt xem: 1102

Danh mục : Bms Controller
Nhãn hiệu : Delta Controls
Dòng sản phẩm : enteliBUS I/O Module

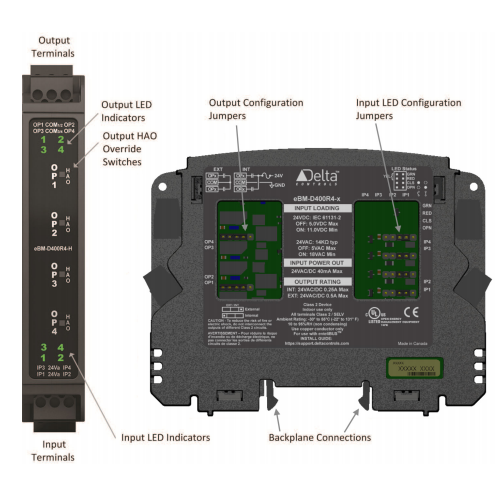

eBM-D400R4 enteliBUS Module (4 BIs,4 Relay OPs)

Mô tả Giá thành viên Mua hàng
eBM-D400R4 eBM-D400R4 enteliBUS Module (4 BIs,4 Relay OPs) Đăng nhập Đăng nhập

Inputs 4 Digital Inputs 24 VDC: IEC61131-2 Type 1/3 Off: 5.0 VDC max On: 11.0 VDC min 24 VAC: 14 kΩ typical loading Off: 5.0 VAC max On: 18.0 VAC min Outputs 4 Relay Outputs (SPST N/O) 24 V (AC or DC) @ 0.5 A max per output* Jumper configurable for internal* or external power 3 position (HAO) monitored override switches (optional) *0.25 A max per output when switching to internal power Mounting Snap mount to enteliBUS backplane and steel 35 mm DIN rail assembly Connectors 3-pin removable screw-type terminal connectors Wiring Class Class 2 / SELV Power 24 VAC / VDC 50/60 Hz @ 5 VA, 27 VA max with fully loaded outputs** **I/O module power is supplied from an eBX or eBCON through the backplane Ambient -30° to 55°C (-22° to 131°F) 10 to 95% RH (non-condensing) Dimensions 12.6 x 2.3 x 10 cm (5.0 x 0.9 x 4.0 in.) Weight 112 g (0.25 lb.) Enclosure Protection Rating IP30 Compliance CE FCC EAC Listings UL 916 Listed

1 enteliBUS Catalog
