enteliBUS I/O Module eBM-D800

Lượt xem: 149

Danh mục : Bms Controller
Nhãn hiệu : Delta Controls
Dòng sản phẩm : enteliBUS I/O Module

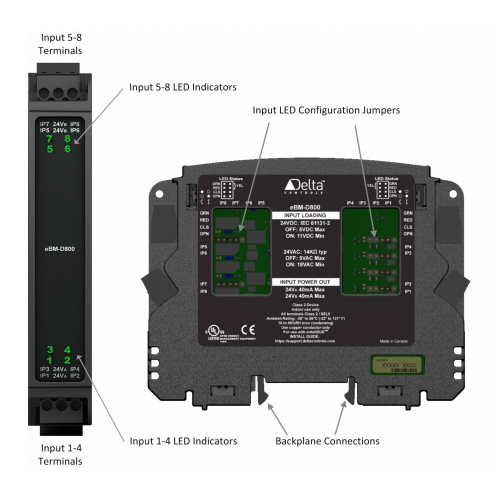

eBM-D800 enteliBUS Module (8 BIs)

Mô tả Giá thành viên Mua hàng
eBM-D800 eBM-D800 enteliBUS Module (8 BIs) Đăng nhập Đăng nhập

Inputs 8 Digital Inputs: 24 VDC: IEC61131-2 Type 1/3 Off: 5.0 VDC max On: 11.0 VDC min 24 VAC: 14 kΩ typical loading Off: 5.0 VAC max On: 18.0 VAC min Mounting Snap mount to enteliBUS backplane and steel 35 mm DIN rail assembly Connectors 3-pin removable screw-type terminal connectors Wiring Class Class 2 / SELV Power 24 VAC / VDC 50/60 Hz @ 5 VA* *I/O module power is supplied from an eBX or eBCON through the backplane Ambient -30° to 55°C (-22° to 131°F) 0° to 55°C (32° to 131°F) for UL 864 product numbers 10 to 95% RH (non-condensing) Dimensions 12.6 x 2.3 x 10 cm (5.0 x 0.9 x 4.0 in.) Weight 112 g (0.25 lb.) Enclosure Protection Rating IP30 Compliance CE FCC EAC Listings UL 916 Listed UL 864 Listed for UL 864 product numbers
