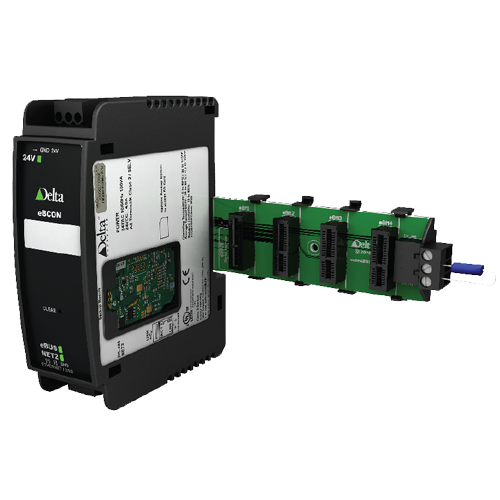

BACnet Device Profile BACnet Building Controller (B-BC) Mounting Backplane: Snap mounts to standard 35mm DIN rail eBCON: Snap mounts to Backplane & DIN rail assembly Device Type/Addressing Software addressed Connectors Removable screw-type terminal connectors Wiring Class Class 2 / SELV Power 24 VAC 50/60 Hz @ 6 VA, 100 VA max with fully loaded I/O modules* *eBCON supplies power for up to 4 I/O modules via the Controller backplane Technology ARM9 32-bit RISC CPU 64 MB Flash memory 32 MB SDRAM memory SD/SDIO card slot for memory expansion Real-time clock (temperature compensated) Ultracap power backup for RTC and memory Communication Ports Ethernet (10/100-BaseT) BACnet/IP, BACnet over Ethernet RS-485 Port supporting: BACnet MS/TP up to 76800 bps, max 99 devices per port Delta LINKnet up to 76800 bps, max 12 devices on LINKnet with no more than 2 DFM devices USB Host Port Ambient -30° to 55°C (-22° to 131°F) 0° to 55°C (32° to 131°F) for UL 864 product numbers 10 to 95% RH (non-condensing) Dimensions 12.6 x 14.5 x 10.0 cm (5.0 x 5.7 x 4.0 in.)** **Dimensions given are for eBCON package with Controller backplane Weight 372 g (0.820 lb) Enclosure Protection Rating IP30 Compliance CE FCC EAC Listings UL 916 Listed UL 864 Listed for UL 864 product numbers BTL Listed
