Room Controller Access Module O3-DIN-ACCESS
Hàng mới: | Lượt xem: 1060
Danh mục : Bms Controller
Nhãn hiệu : Delta Controls
Dòng sản phẩm : Integrated Room Controller O3

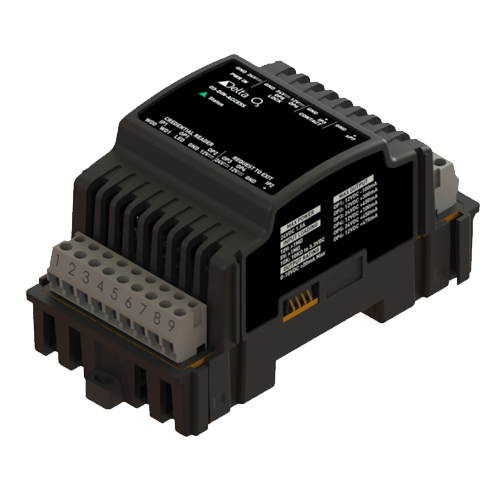

O3-DIN-ACCESS Room Controller Access Module (Access, Single Door)
Mã | Mô tả | Giá thành viên | Mua hàng |
---|---|---|---|
O3-DIN-ACCESS | O3-DIN-ACCESS Room Controller Access Module (Access, Single Door) | Đăng nhập | Đăng nhập |
Inputs 1 Wiegand input for credential reader data (reader, keypad, biometric device, etc.) 1 input for request-to-exit switch 1 input for door contact Outputs 1 LED Open collector for credential reader 12VDC, -25 mA max 1 Binary outputs for credential reader power 1 12VDC, 300 mA 2 Binary outputs for powering requestto-exit or door accessories 1 24VDC, 450 mA 1 12VDC, 100 mA 2 Binary outputs for door lock or door accesories 1 24VDC, 450 mA 1 12VDC, 475 mA Universal Point (Input or Output) 1 input (16 bit), supporting: 0-5 VDC 0-10 VDC 10 kΩ Thermistor Dry Contact (using 10 kΩ Thermistor software setting) 4-20 mA (using external 250 Ω resistor on 0-5 V setting) 1 output (12 bit), supporting: 0-10 V @ 20 mA max Connectors Removable screw-type terminal connectors Wiring Class Class 2 / SELV Power 24 VDC, 1.5 A (36 W max) Ambient -30° to 55°C (-22° to 131°F) 10 to 95% RH (non-condensing) Dimensions 57 x 107 x 58 mm (2.2 x 4.2 x 2.3 in.) Weight 102 g (0.22 lb) Compliance CE FCC Listings UL 916 Listed
