Room Controller Communication Module Protocol O3-DIN-SMI
Hàng mới: | Lượt xem: 872
Danh mục : Bms Controller
Nhãn hiệu : Delta Controls
Dòng sản phẩm : Integrated Room Controller O3

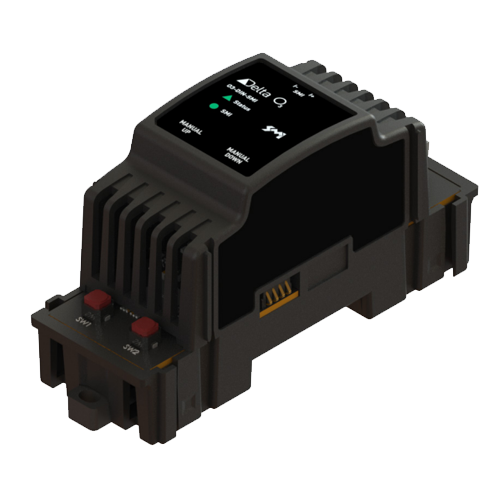

O3-DIN-SMI Room Controller Communication Module Protocol (SMI Protocol)
| Mã | Mô tả | Giá thành viên | Mua hàng |
|---|---|---|---|
| O3-DIN-SMI | O3-DIN-SMI Room Controller Communication Module Protocol (SMI Protocol) | Đăng nhập | Đăng nhập |
External Inputs 2 push buttons for Manual Up and Manual Down Connectors Removable screw-type terminal connectors Wiring Class Class 2 / SELV Power 24 VDC, 0.9 W max fully loaded* * Module power is internally supplied from the O3-DIN controller through the module bus port. SMI Power 18 VDC, 30 mA max Communication Port 2-pin SMI communication port Ambient Rating –30°C to 55°C (–22°F to 131°F) 10% to 95% RH (non-condensing) Dimensions 3.6 × 11.1 × 5.8 cm (1.42 × 4.37 × 2.28 in.) Weight 70 g (0.15 lb) Compliance CE FCC SMI
