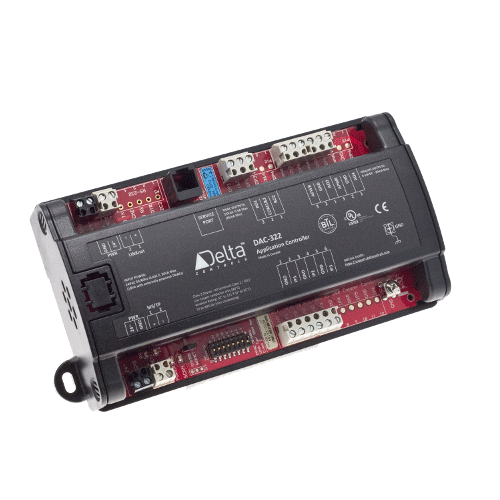

BACnet Device Profile BACnet Advanced Application Controller (B-AAC) Inputs 3 Universal Inputs (10-bit), supporting: 0-5 VDC 0-10 VDC 10 kΩ Thermistor Dry Contact (using 10 kΩ Thermistor jumper setting) 4-20 mA Outputs 2 Binary TRIAC Outputs (jumper configured for internal or external power) 2 Analog outputs (0-10 VDC), software configurable as binary or analog Device Addressing Set via DIP switches or software setup Connectors Removable screw-type terminal connectors Wiring Class Class 2 / SELV Power 24 VAC 50/60 Hz @ 10VA, 34 VA max with fully-loaded Binary Outputs Technology 16-bit processor 1 MB Flash memory 127 KB SRAM memory for database Communications Ports RS-485 NET1: BACnet MS/TP up to 76800 bps, max of 99 devices per port RS-485 NET2: Delta LINKnet up to 76800 bps, max 4 devices on LINKnet, with no more than 2 DFM devices Optional Modbus up to 38400 bps, max 5 devices Ambient 32° to 131°F (0° to 55°C) 10 to 90% RH (non-condensing) Dimensions 7⅝ x 4 x 1⅞ in. (19.2 x 10.2 x 4.8 cm) with housing Weight 0.551 lb. (250 g) with housing Compliance CE FCC Listings C-UL Listed UL 916 Listed BTL Listed
