enteliBUS I/O Module eBM-440I

Lượt xem: 101

Danh mục : Bms Controller
Nhãn hiệu : Delta Controls
Dòng sản phẩm : enteliBUS I/O Module

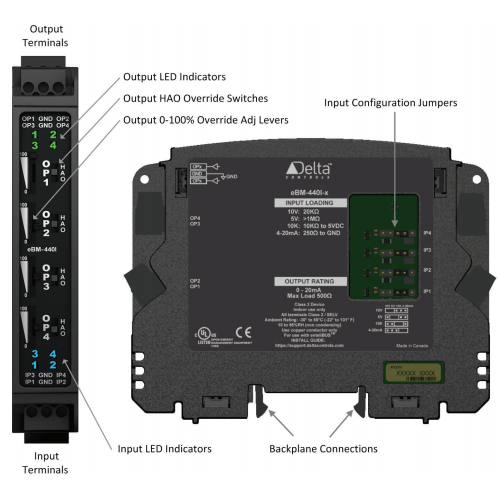

eBM-440I enteliBUS Module (4 UIs, 4 (0-20mA) AOs)

Mô tả Giá thành viên Mua hàng
eBM-440I eBM-440I enteliBUS Module (4 UIs, 4 (0-20mA) AOs) Đăng nhập Đăng nhập

Inputs 4 Universal Inputs (12-bit or 16-bit*), jumper configurable for: 0-5 VDC 0-10 VDC 10 kΩ Thermistor Dry Contact (using 10 kΩ Thermistor jumper setting) 4-20 mA * Available with eBCON, eBX or eBMGR Rev. 3.0 Outputs 4 Current Outputs 0-20 mA, 250-500 Ω Optional 3 position (HAO) override switches with 0 to 100% override adjust leversadjust levers Mounting Snap mount to enteliBUS backplane and steel 35 mm DIN rail assembly Connectors 3-pin removable screw-type terminal connectors Wiring Class Class 2 / SELV Power 24 VAC/DC 50/60 Hz @ 10 VA** ** Current loop power is supplied through the module Ambient -22° to 131°F (-30° to 55°C) 10 to 95% RH (non-condensing) Dimensions 12.6 x 2.3 x 10 cm (5.0 x 0.9 x 4.0 in.) Weight 124 g (0.273 lb) Enclosure Protection Rating IP30 Compliance CE FCC Listings UL 916 Listed
