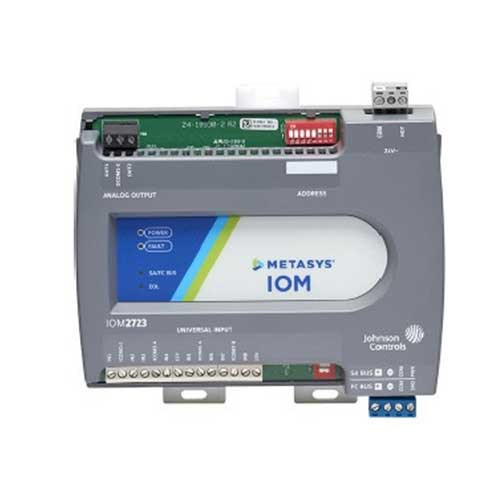

Input/Output Module Series MS-IOM2723-0

Lượt xem: 146

Danh mục : Bms Controller
Nhãn hiệu : Johnson Controls
Dòng sản phẩm : MS Input/Output Modules

10-Point IOM with 8 UI, 2 AO, FC and SA Bus Support (The Input/Output Expansion Module has 10 Input/Output (I/O) points (8 UI, 2 AO) and is BTL-listed and certified at Protocol Revision 15.)

Mô tả Giá thành viên Mua hàng
MS-IOM2723-0 10-Point IOM with 8 UI, 2 AO, FC and SA Bus Support (The Input/Output Expansion Module has 10 Input/Output (I/O) points (8 UI, 2 AO) and is BTL-listed and certified at Protocol Revision 15.) Đăng nhập Đăng nhập

A range of Input/Output modules compatible with Metasys. IOMs can serve in one of two capacities depending on where they are installed on the Metasys system. When installed on the Sensor Actuator (SA) Bus of an Field Equipment Controller (FEC), the IOMs expand the point count of these controllers. When installed on the Field Controller (FC) Bus as point multiplexers, IOMs allow a Network Automation Engine (NAE) or Network Controller Engine (NCE) to monitor and control supervisory points directly. A full range of FEC/FAC models combined with the IOM models can be applied to a wide variety of building applications ranging from simple fan coil or heat pump control, to advanced central plant management. Features Expands controllers for larger applicationsFlexible configurations: 4, 6, 12 and 17-point expandabilityIntegrates at both field and supervisory levelsModels with 16 inputs for monitoring applications

1 IOM European Catalog Page
2 IOM3723
3 IOM2723
4 IOM3733
5 IOM17 & 2711
6 IOM2721
7 IOM3711
8 IOM3721
9 IOM3731
10 IOM47
